Fresh-Air or Make Up Air Intake Vents

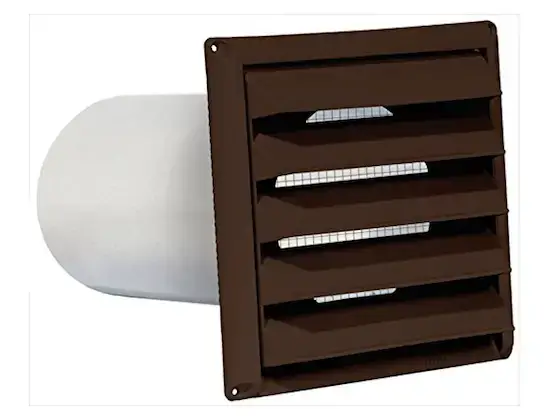

fresh air intake vent

This fresh-air intake vent will do a great job. You may need several to get enough air indoors to satisfy all fuel-burning appliances. Pipe them with solid 4-inch metal pipe. The tips below are SO GOOD I decided to share them with my 31,000 subscribers who read my November 29, 2020 newsletter. CLICK THE IMAGE TO ORDER THIS VENT NOW.

Fresh Air Vent TIPS

  • Fresh-air vents prevent dangerous backdrafting
  • Fans, furnaces, water heaters, etc. need fresh or makeup air
  • DIY friendly - cut a 4.25-inch hole in the side of  your house
  • WATCH my VIDEO Below!
  • CLICK HERE to Get Tim's FREE & FUNNY Newsletter!

IMPORTANT TIP: Make-up air vent is the same thing as a fresh-air intake vent.

DEAR TIM: I've got both a fireplace and a free-standing wood heater spaced 15 feet apart from one another in my open kitchen and living area. The fireplace has a fresh air vent in the hearth.

I've only used the fireplace twice in fifteen years because when I start a fire in the fireplace, it pulls a sooty smell from the wood heater. Surprisingly, I do not get the smell when I use the wood heater.

I'd like to install gas logs in the fireplace. Will gas logs pull air from the wood heater and cause the same sooty smell? Jamie L., Gulfport, MS

Fresh Air Vent Needed for Fireplaces

DEAR JAMIE: I would be willing to bet money on my answer: Yes. Based upon your description, you are experiencing back drafting.

A fireplace consumes vast amounts of air each minute as the fuel burns. It can easily be 250 to 350 cubic feet of air per minute. The fresh air vent in the hearth may be blocked or it may not be able to supply enough air to satisfy the appetite of the fire.

The additional air to feed the fire must come from somewhere. Simple physics will tell you that the air will enter the room through the path of least resistance. In your case, it appears the air has decided to enter the room through the flue of the wood heater.

CLICK HERE to get FREE & FAST BIDS from local contractors that can install a fresh-air intake vent at your home.

Dangerous Backdrafting

Back drafting is an enormous problem. It is a by-product of the constant push to make homes more energy efficient and air tight.

The trouble is, homes are equipped with things that blast air, and lots of it, out of the living space. Carbon monoxide, CO, is a real danger if you don't prevent backdrafting in your home.

Fans, Water Heaters & Central Vacs Need Fresh Air!

Have you ever stopped to think about what happens when you activate the switch for your bath fans, kitchen cooking ventilation fans and central vacuum cleaner? What happens when you turn on your clothes dryer? These devices exhaust air outdoors and in doing so create a partial vacuum in your home.

You need to make sure you have as much air coming into your house where you WANT IT TO COME IN as you have air leaving your home via all those things above you turn on!

All you need is a simple fresh-air vent that is cut into the sidewall of your home. Here's a dandy one:

Fresh-air Vent VIDEO:

Controlled Entry

If you do not have an air inlet to re-supply the exhausted air, the replacement air will leak in through windows, doors, chimneys, water heater and furnace exhaust piping, cracks in the house exterior, etc.

If several appliances are operating and the demand for air is great enough, exhaust gases from fuel burning appliances can be sucked backwards into your home. This can cause dangerous carbon monoxide to be pulled back into your home.

Modern Furnaces Have Built-In Fresh Air

Many modern furnaces and water heaters have built-in pathways for the air needed to burn the fuel. In fact, virtually every residential building code mandates that combustion air for fuel burning appliances be supplied to fuel-burning appliances.

But more air than combustion air is needed in the average home. For years, commercial and institutional building codes have required this extra ventilation or make-up air.

This air creates a healthier interior environment, insures that plenty of fresh air is entering the building and that dangerous back drafts are avoided. It is in your best interest to provide this ventilation or make-up air.

This thinking is not new by any means. There are companies that actually sell sophisticated air exchange devices that provide some or all of this needed ventilation or make-up air.

But I am not so sure that you need to invest in this equipment. If you do decide to investigate these appliances, be absolutely certain that you see a clear rate of return on your investment. In my opinion, there may be some more practical and far less-expensive solutions.

CLICK HERE to get FREE & FAST BIDS from local contractors that can install a fresh-air intake vent at your home.

Fresh-Air Vents Are Easy to Install

There are many types of fresh-air vents. If you want to provide fresh air into your heating and air-conditioning system as is done on commercial jobs, you'll need more than one.

You'll pipe one, or more, close to the appliances that are burning fuel. This will supply the needed combustion air.

You'll pipe one, a simple 4-inch pipe is all that's needed, directly to the return air plenum very near your air handler or furnace. Any decent HVAC technician can do this.

CLICK HERE to get FREE & FAST BIDS from local contractors that can install a fresh-air intake vent at your home.

Higher Fuel Bills With Fresh Air?

You may wonder if the introduction of cold or hot air into your home will cause your energy bills to rise significantly. In actuality, they may stay the same or drop.

The air that is consumed by the fans, clothes dryers, vacuums, fireplaces, fuel burning appliances, etc. is coming in anyway to offset the vacuum produced when these things operate. By installing a simple device to cause this air to enter in just one place instead of many different places, the thermostat that controls your furnace and air conditioner may actually cycle on fewer times each day.

Read the email I received from the guy who purchased my house back in Cincinnati, OH. He was questioning an open air duct.
